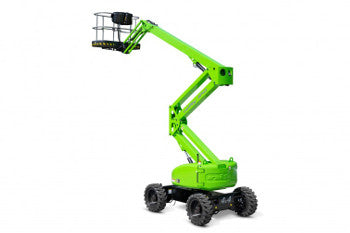

45FT Self-Propelled Boom Lift
The SP45 4x4 offers one of the most impressive working envelopes in its class.
Its compact base allows it to maneuver easily in enclosed spaces and its extremely low overall weight helps to minimize transportation costs.
The SP45 4x4's 5ft 11in wide ToughCage offers more space for materials and tools and a 150° jib-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides additional user protection.
SP45 4x4 Specifications
Working Height (A):51ft 6in
Working Outreach (C):31ft
Platform Height (B):45ft
Machine Width (F):6ft 7in
Machine Height (D):6ft 11in
Machine Length (J):20ft 10in
Transport Length (H):15ft 9in
Travel Speed:3.7mph
Gradeability:45%
Gradeability:24°
Turning Radius:12ft 2in
Minimum Weight:9920(D)
Safe Working Load:500lbs
Jib Boom Arc:150°
Basket Rotation:180°
Basket Width:5ft 11in
Basket Depth:2ft 9in
